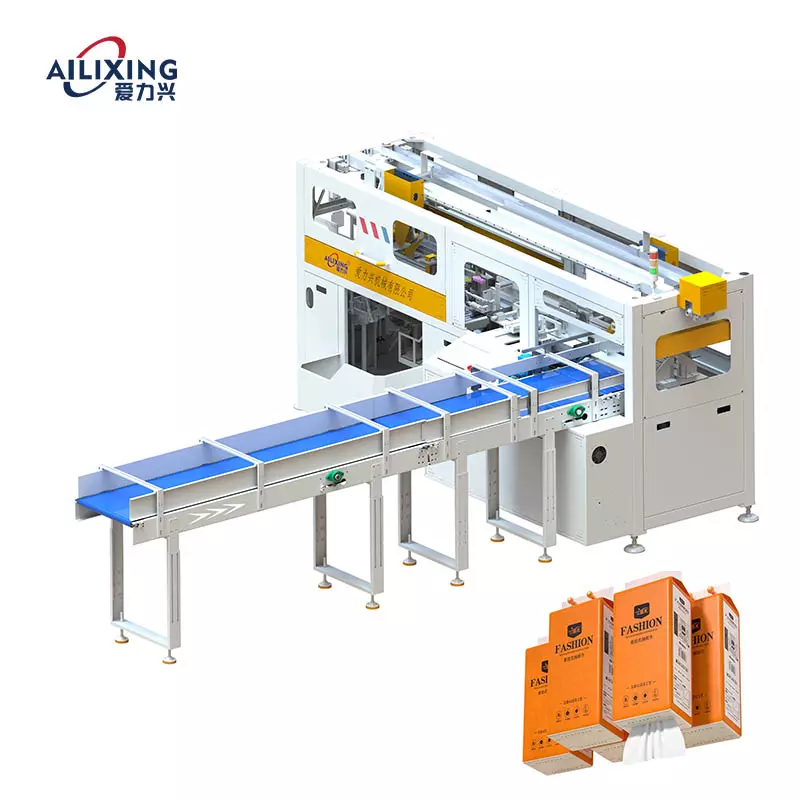

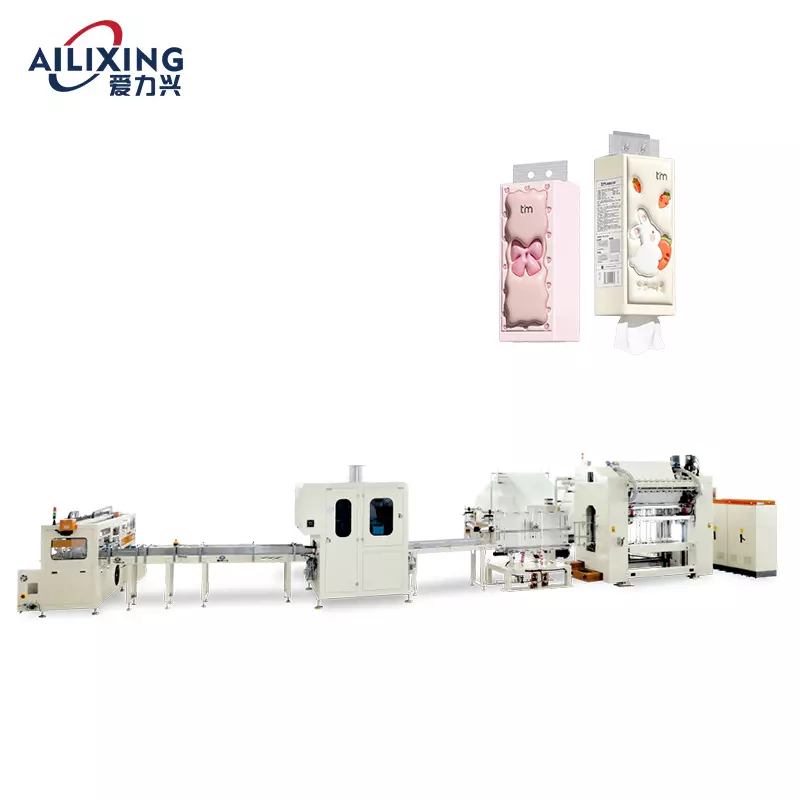

Bottom Pull Paper Production Line
Email：ailixingmachinery2018@gmail.com
WhatsApp：+8615999852935
We have been focusing on the post-processing of household paper for 17 years, independently developing and producing a full range of intelligent equipment, providing one-stop solutions from folding, slitting, rewinding to packaging. Covering core models such as paper drawers, roll rewinders, handkerchief production lines, boxed facial tissue equipment, etc.
Core advantages:
√ Modular design, support for personalized customization
√ Intelligent PLC control + energy-saving system, yield rate > 99%
√ Full line capacity 200-800 pieces/hour flexible configuration
√ 48-hour after-sales response, glo
Products
Latest News
Product Details
|
Design speed
|
130 m/min
|
|
Production speed
|
100-120 m/min
|
|
Conventional roll width
|
1550 mm, folding widths available: 165, 170, 175, 180, 190, 200, and 210 mm.
|
|
Suitable base paper
|
Straw pulp, wood pulp, sugarcane pulp, bamboo pulp, etc.
|
|
Base paper weight
|
Three-ply, 14-18 g/m2 per layer; four-ply, 11.5-15 g/m2 per layer.
|
|
Finished product height
|
Minimum 20 mm, maximum 400 mm
|
|
Mainframe wall panel structure
|
Wall panel frame, 40 mm thickness
|
|

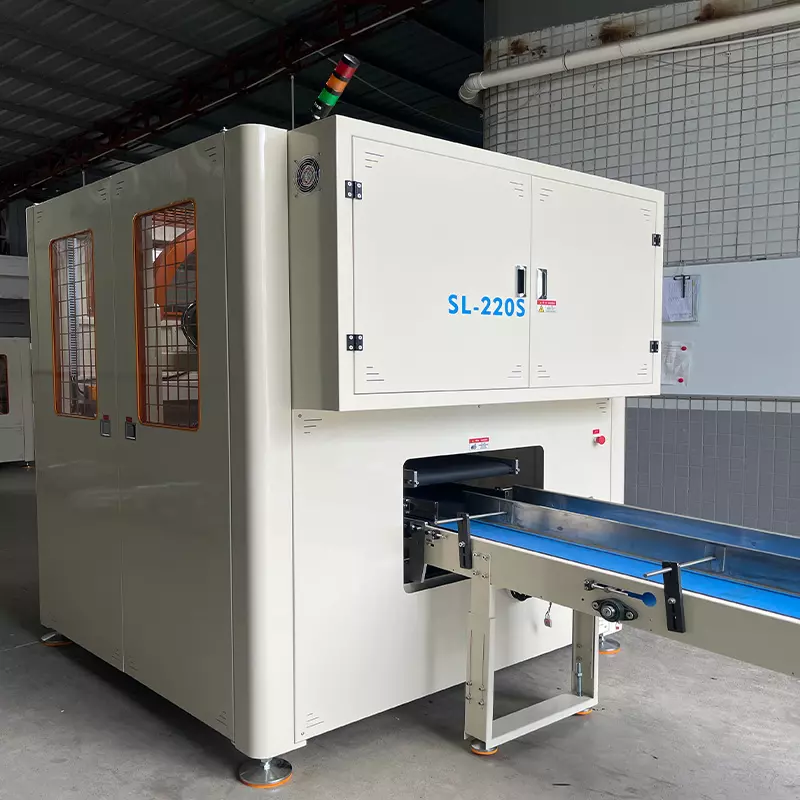

Model
|
SL-220S
|
|
Paper cutting specifications
|
L:100-200mm;W:200-450mm;H:80-120mm
|
|
Stable production speed
|
150-200cuts/min
|
|
Machine power
|
13KW
|
|
Weight
|
2000KG
|
|
Dimension(main machine)
|
L1910mm*W1850mm*H1950mm
|
|
Power supply type
|
three-phase 380V/50HZ
|
|
Air pressure
|
0.5-0.8Mpa
|

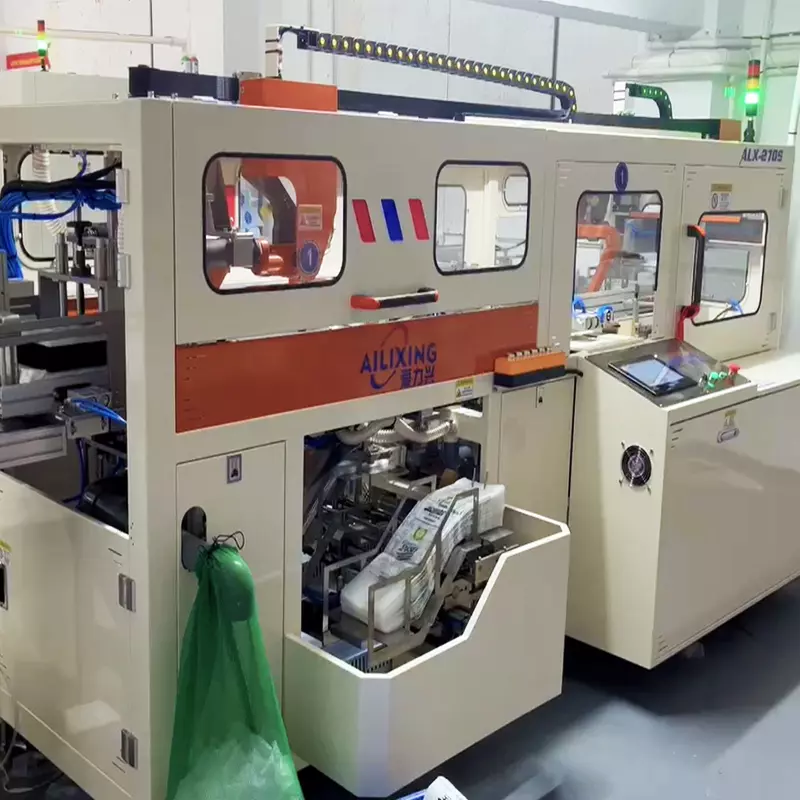

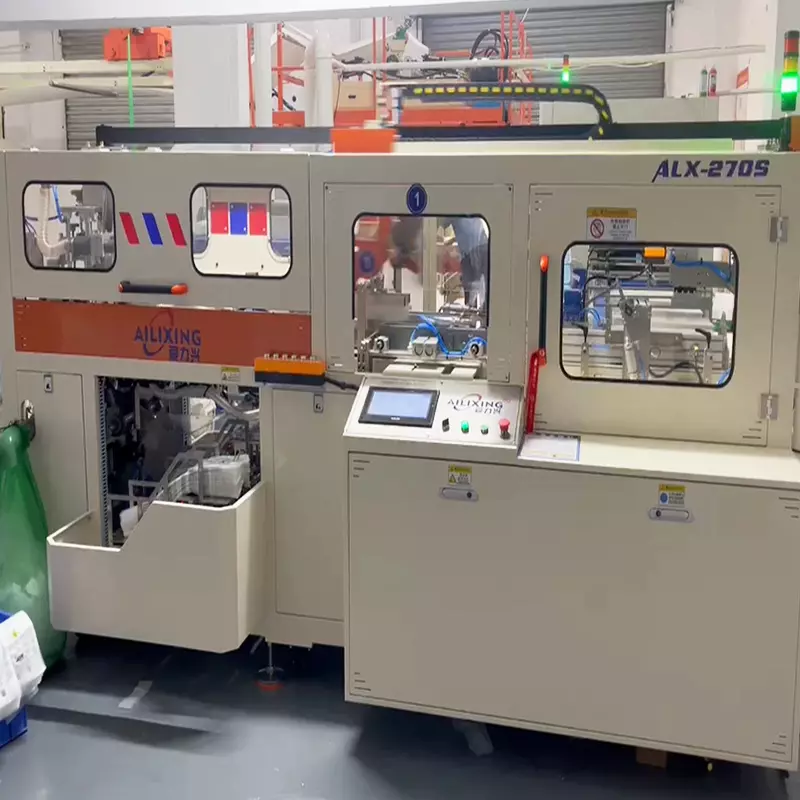

| Model | ALX-270S |
| Design | 32 bags/min |
| Stable production speed | 28-30 bags/min |
| Machine power | 10KW |
| Weight | 1500KG |
| Dimensions （main machine） | L3800*W1560*H1700 (mm) |
| Power supply type | three-phase 380V/50HZ |
| Air pressure | 0.5-0.8 Mpa |
| Package size | L200-400mm*W125-250mm*H85-130mm |
| Packing material | PE,AP and other double-sided hot-sealed prefabricated bag |
