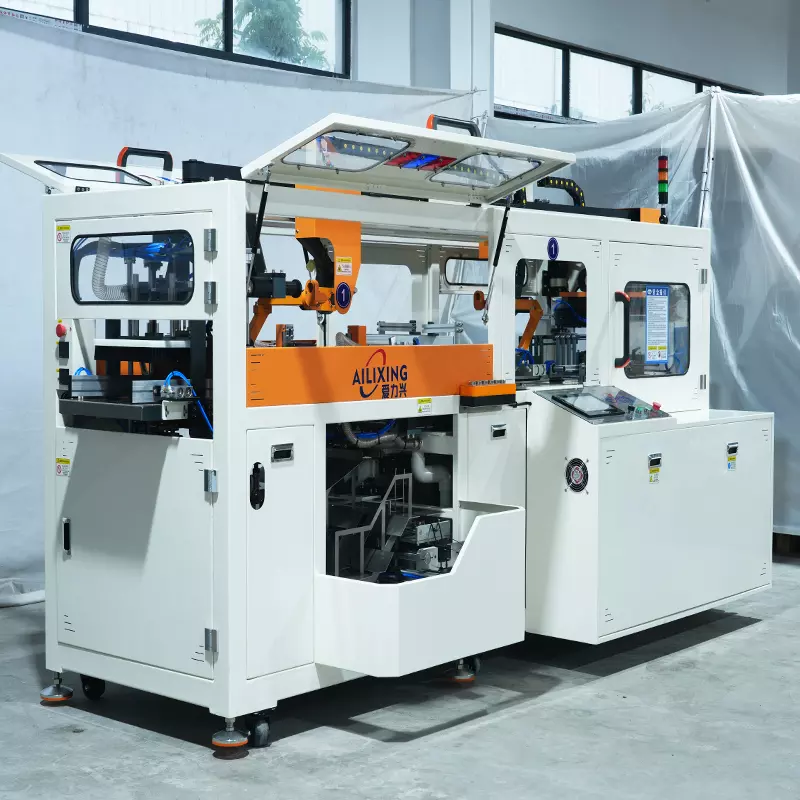

ALX-270S hanging facial tissue packaging machine
Menu
Product Parameters
| Model | ALX-270S |
| Design speed | 32packets /min |
| Stable production speed | 28-30 packets/min |
| Power | 10KW |
| Weight | 1500KG |
| Dimensions (main machine) | L3800mm*W1560mm*H1700mm |
| Power supply type | three-phase 380V/50HZ |
| Air pressure | 0.5-0.8Mpa |
| Package size | L200-450mm*W125-250mm*H85-130mm |
| Packing material | PE, AP and other double-sided hot-sealed prefabricated bag |
Automatic double push rod bottom pumping packaging machine (industry first)
270S double push bottom pumping packaging machine is suitable for hanging pumping paper, cotton towel, toilet paper,
generous pumping and so on;
● The whole machine adopts 9 sets of servo motion control system, soft action, stable operation, high degree of automation,
independent intellectual property rights (optional automatic paperboard function);
● Independent intellectual property rights into the material, the way of material management, the whole machine electric
adjustment function, the conversion specification is convenient and fast;
● Double bag library design, one ready for one use, automatic switching bag library function, no stop on the bag, smooth and
stable on the bag, improve production capacity;
● Energy saving and consumption reduction, rated power of equipment 10KW, normal operation production does not exceed 8KW
, energy consumption is much lower than similar products at home and abroad;
● The whole machine is equipped with safety switch, automatic alarm and shutdown when running, to ensure the safety of the equipment
, compact machine design, small footprint, low energy consumption, can meet the line production of various sites;
