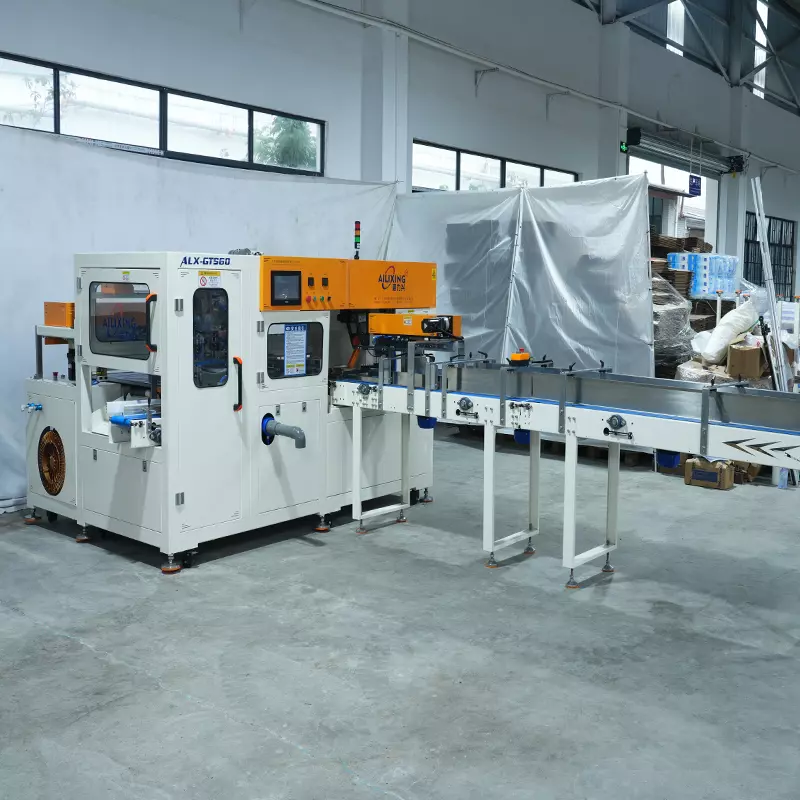

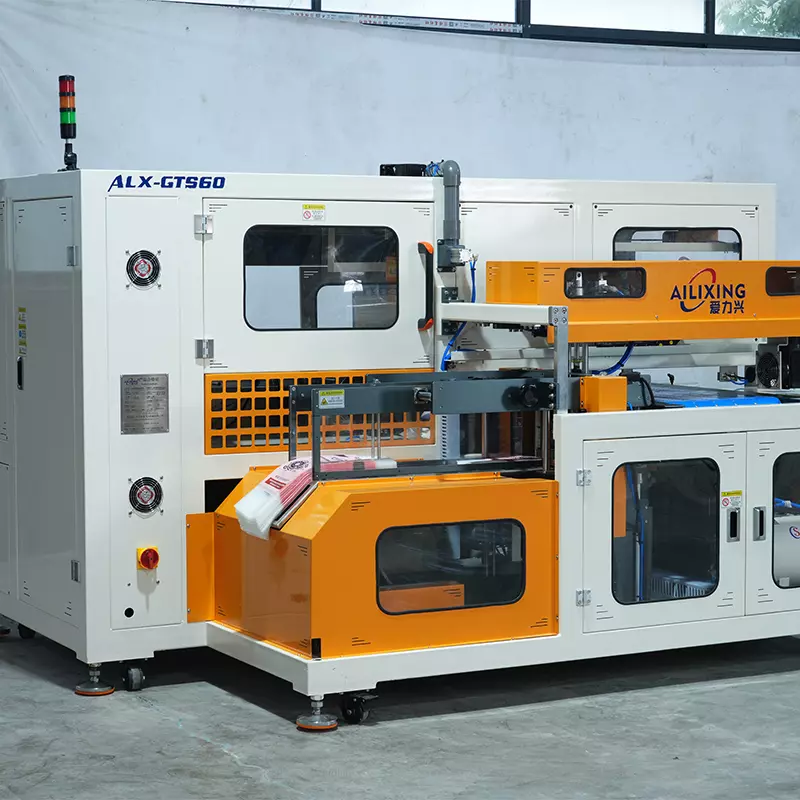

ALX-GTS60 high speed hanging facial tissue packaging machine
Menu
| Model | ALX-GTS60 |
| Design speed | 65 packets/min |
| Stable production speed | 60 packets/min |
| Machine power | 26KW |
| Weight | 3000KG |
| Dimensions (main machine) | L2670mm*W1860mm*H1610mm |
| Power supply type | three-phase 380V/50HZ |
| Air pressure | 0.5-0.8Mpa |
| Package size | L200-400mm*W125-200mm*H85-100mm |
| Packing material | PE, AP and other double-sided hot-sealed prefabricated bag |
High-speed wall-mounted paper packing machine (Industry leader in paper packing machine)
GTS60 high-speed bottom packing machine is suitable for hanging facial tissues, cotton towels, toilet paper and so on
● The whole machine adopts 13 sets of absolute servo control system, 4 sets of inverter control system, high-precision electric eye tracking, high-definition human-computer interaction interface display, fast response, stable system operation, simple operation, novel design, the whole machine stable operation speed of up to 60packets /min;
● Large capacity double bag library design, one ready for one use, no stoppage on the bag, to ensure production efficiency, prefabricated bag packaging, using negative pressure to bag, accurate positioning, with automatic correction, elimination, bagless no push material and other functions;
● Material management is simple and reliable, the conversion specification is simple and fast;
● Constant temperature sealing, negative pressure adsorption molding, beautiful corner, smooth sealing;
● The whole machine has gas-electric protection function, the whole machine design is simple, compact structure, small footprint, can meet a variety of sites connected production, packaging range is wide;
